Freewheeler

Description

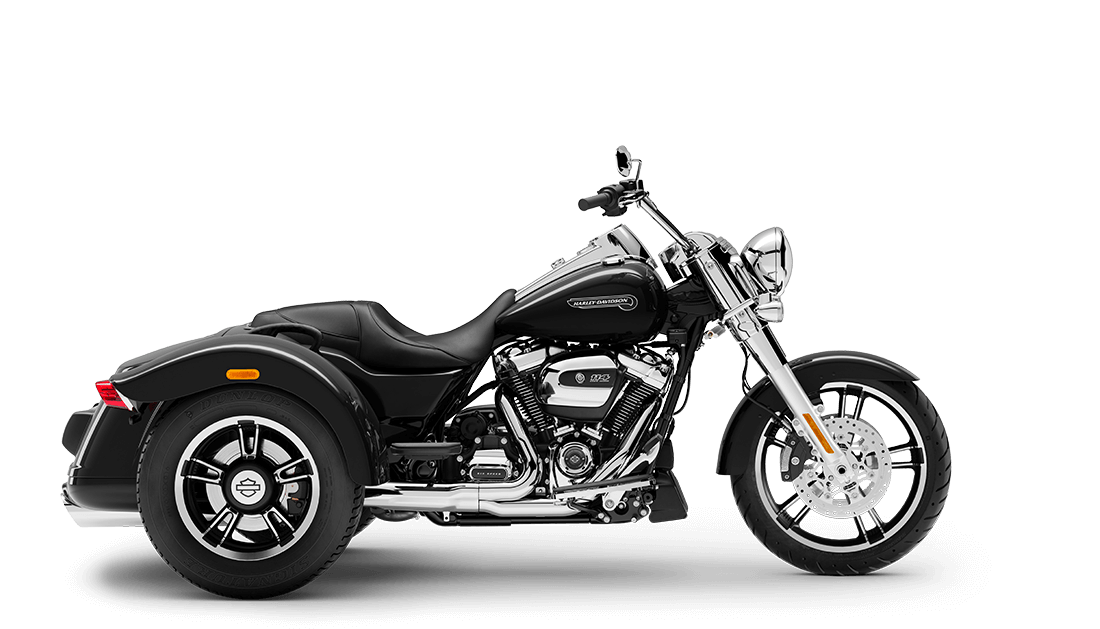

The bobbed fenders, Enforcer aluminum wheels and 12-inch mini-ape hanger handlebars give the Freewheeler® three-wheeler a stripped-down, garage custom look. But its optional trike-specific Reflex™ Defensive Rider System with tire-pressure monitoring is something you can only get from the H-D factory. All powered by the Milwaukee-Eight® 114 V-Twin engine, this trike transcends comfort on its 49-millimeter front forks and easily adjustable rear suspension.

Specifications

  • Dimensions
    add remove
    • Length
      2615 mm
    • Ground clearance
      125 mm
    • Rake
      26
    • Trail
      101 mm
    • Wheelbase
      1,670 mm
    • Tyres, front specifications
      MT 130/60B19 M/C 61H
    • Tyres, rear specifications
      P205/65R15
    • Fuel capacity
      22.7 l
    • Oil capacity
      4.7 l
    • Weight, as shipped
      492 kg
    • Weight, in running order
      1,118 lb
    • Luggage capacity – volume
      2 cu ft (0.06 m3)
  • Engine
    add remove
    • Engine
      Milwaukee-Eight® 114
    • Bore
      102 mm
    • Stroke
      114 mm
    • Displacement
      1868cc
    • Compression ratio
      10.5:1
    • Fuel system
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust
      Shorty slash down-style chrome finish mufflers
  • Performance
    add remove
    • Engine torque testing method
      J1349
    • Engine torque
      165 Nm
    • Fuel economy
      5.5 l/100 km
  • Drivetrain
    add remove
    • Primary drive
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st
      10.534
    • Gear ratios (overall) 2nd
      7.302
    • Gear ratios (overall) 3rd
      5.423
    • Gear ratios (overall) 4th
      4.392
    • Gear ratios (overall) 5th
      3.741
    • Gear Ratios (overall) 6th
      3.157
  • Chassis
    add remove
    • Wheels, front type
      Enforcer Cast Aluminum
    • Wheels, rear type
      Enforcer Cast Aluminum
    • Brakes, caliper type
      Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
  • Electric
    add remove
    • Lights (as per country regulation), indicator
      High beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, gear indicator, low fuel warning, reverse, park brake
    • Gauges
      Speedometer, fuel gauges; display features odometer, trip A, trip B, range to empty, and gear indicator
  • Colour options
    add remove
    • Vivid Black
    • Performance Orange
    • Stiletto Red
    • Barracuda Silver Denim
